Denso DST-i DN-VIM-003 Diagnostic Scan Tool

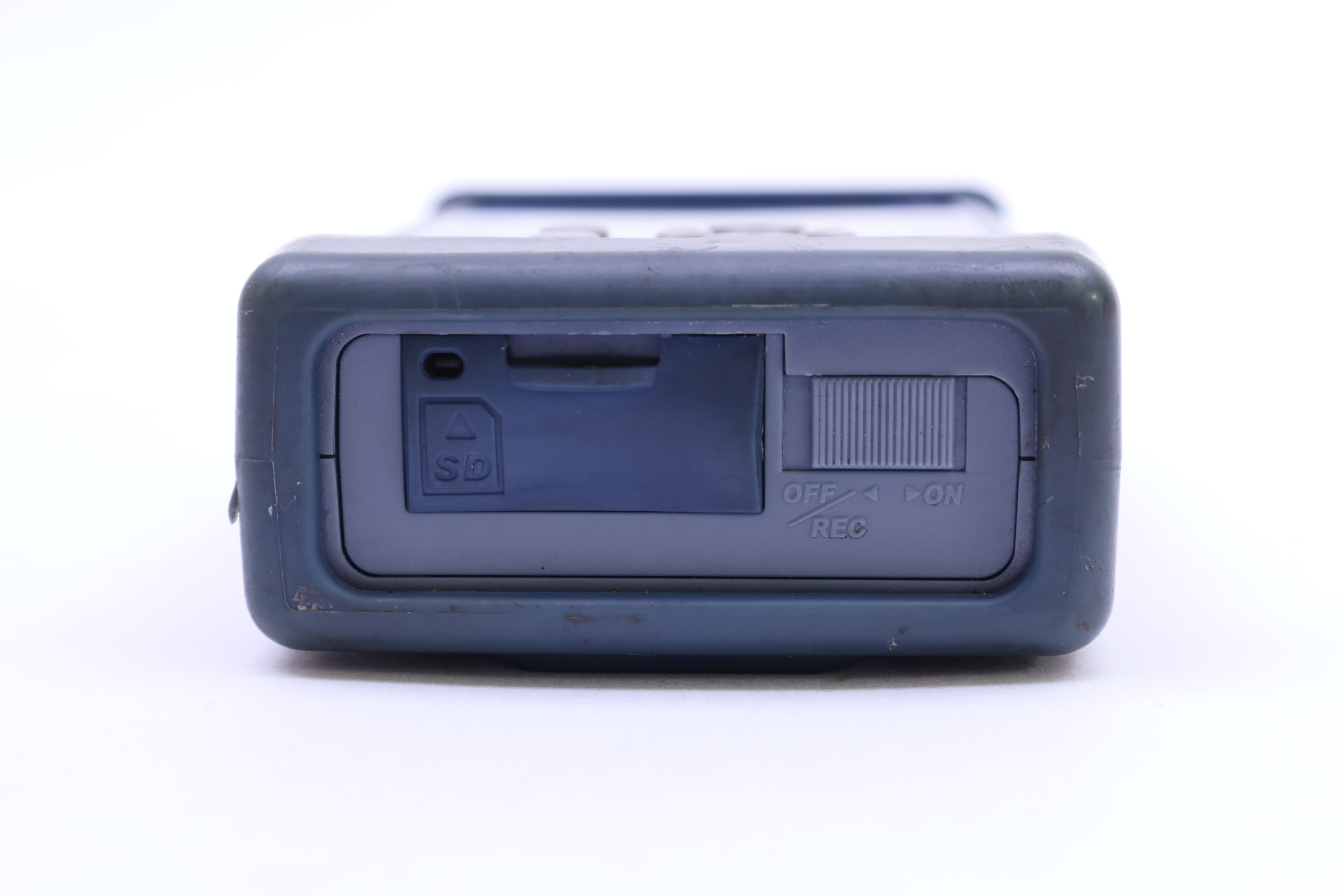

Features a 32-bit RISC microcomputer running on the µiTRON OS, with 16 MB of built-in Flash ROM, 16 MB SDRAM, and 32 KB EEPROM. It includes a 2.7-inch TFT color LCD with a QVGA resolution of 320 x 240, displaying up to 260,000 colors, and is operated via 6 keys. External interfaces include USB 2.0, Bluetooth 2.0, an SD memory card slot (supporting SD and SDHC cards), and a JEITA4 standard type DC jack. It supports various vehicle communication protocols with a dedicated D-sub 25 pin connector, including ISO9141, CAN, J1850 (VPW and PWM), J1708, RS232C, and Serial (5V). The measurement functions include simple voltage measurement and a trigger cable, along with an RTC clock for timing. Power is supplied via vehicle power (DC 6.5 to 32 V) or USB power (DC 4.75 to 5.25 V), with power consumption ranging from 1.5 W to 2.5 W.

Denso DST-i DN-VIM-003 Diagnostic Scan Tool

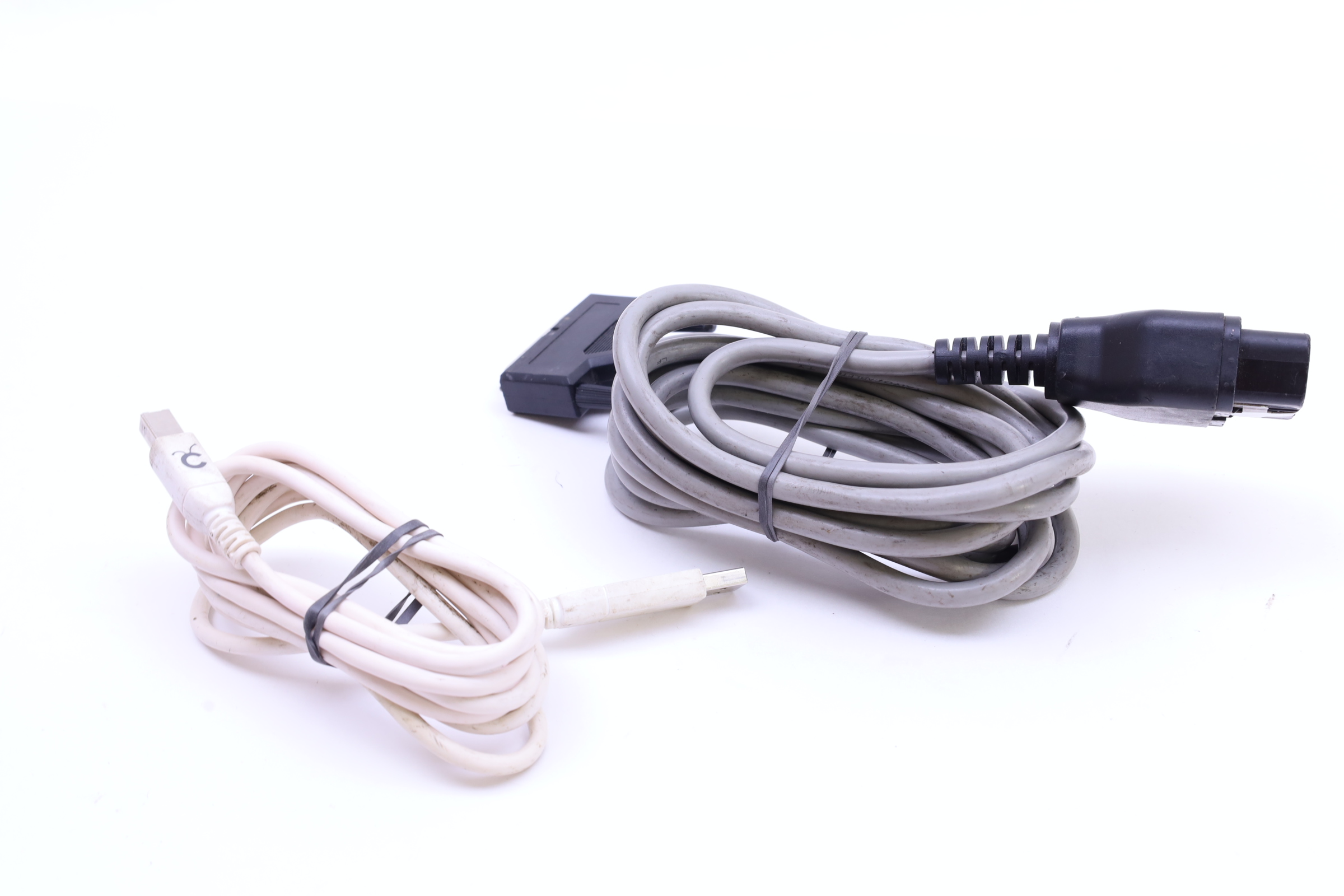

USB Cable
Data Cable

DC Power Supply
Computer Software

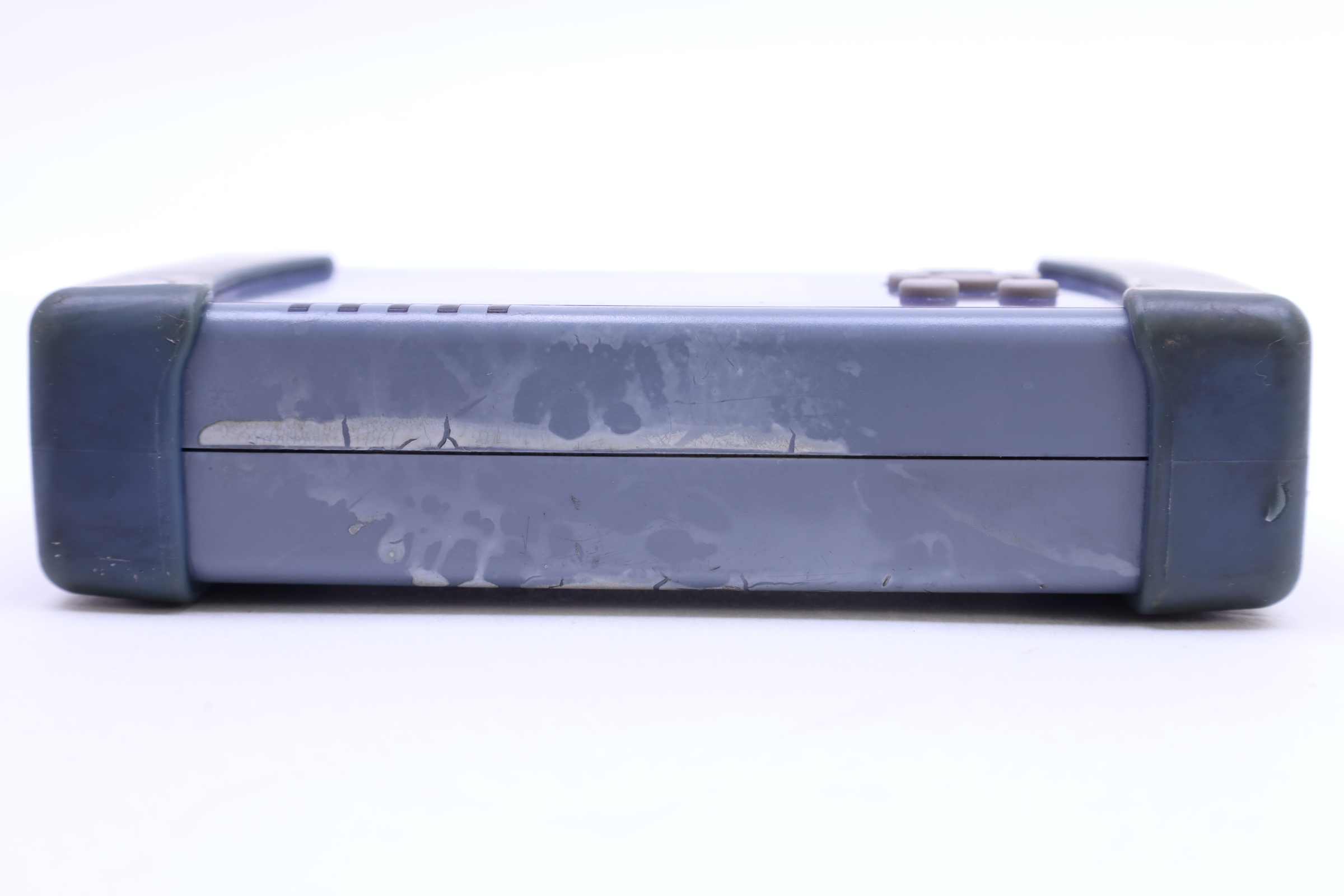

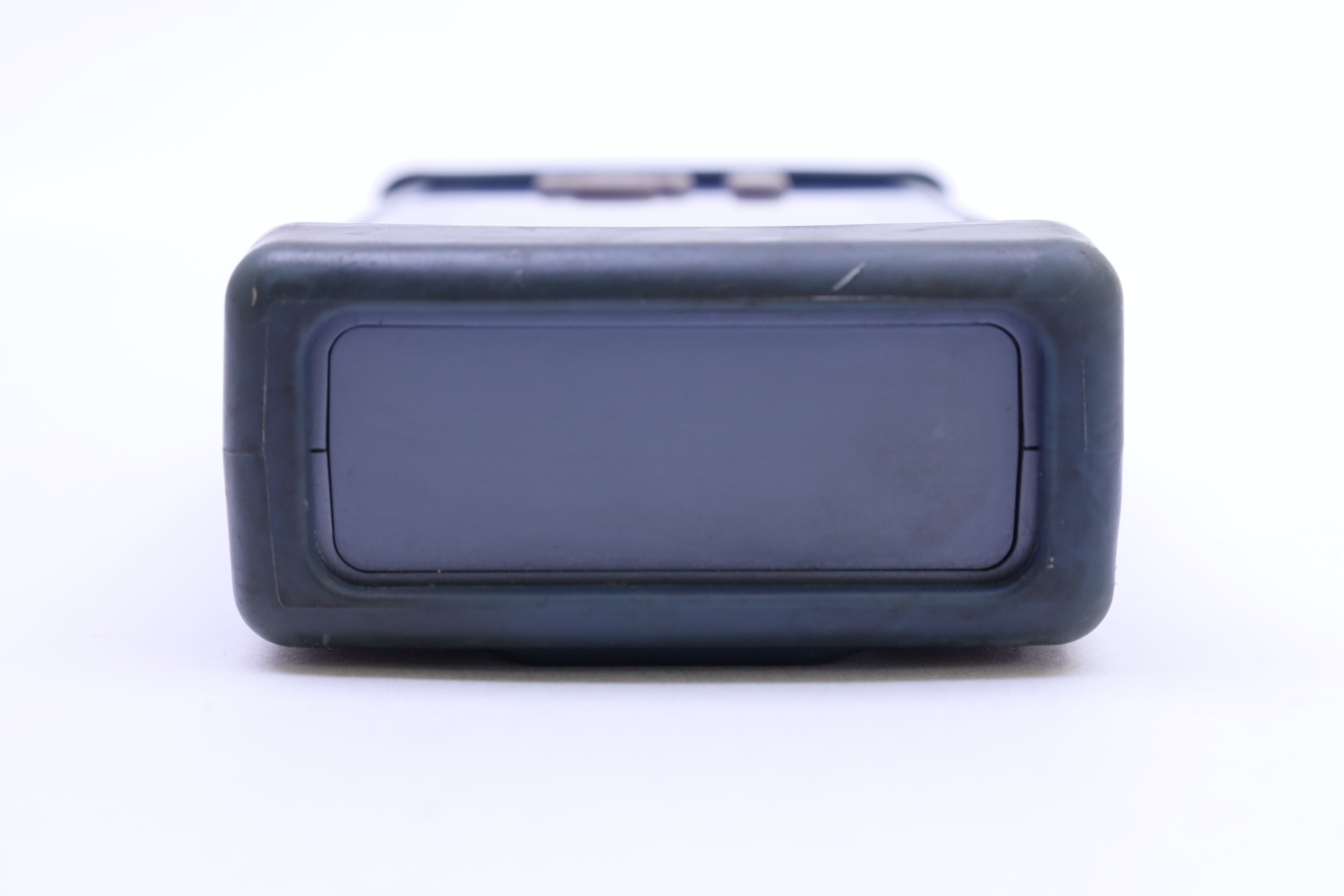

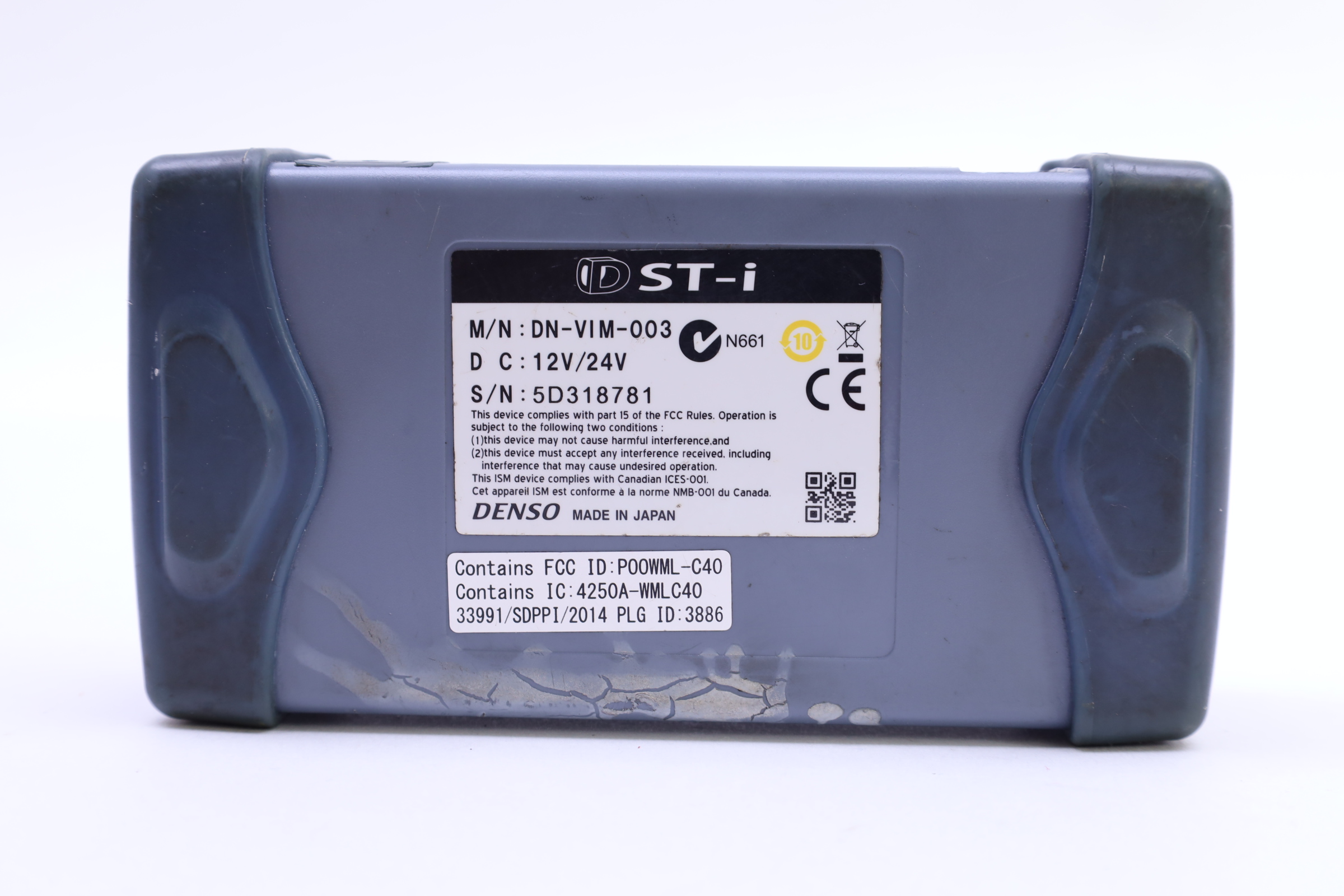

Denso Diagnostic Tool is previously owned. Shows signs of use with some scuffs and marks. Some notable wear on back and bottom of chassis. Unit was tested and does turn on. See photos for details.
